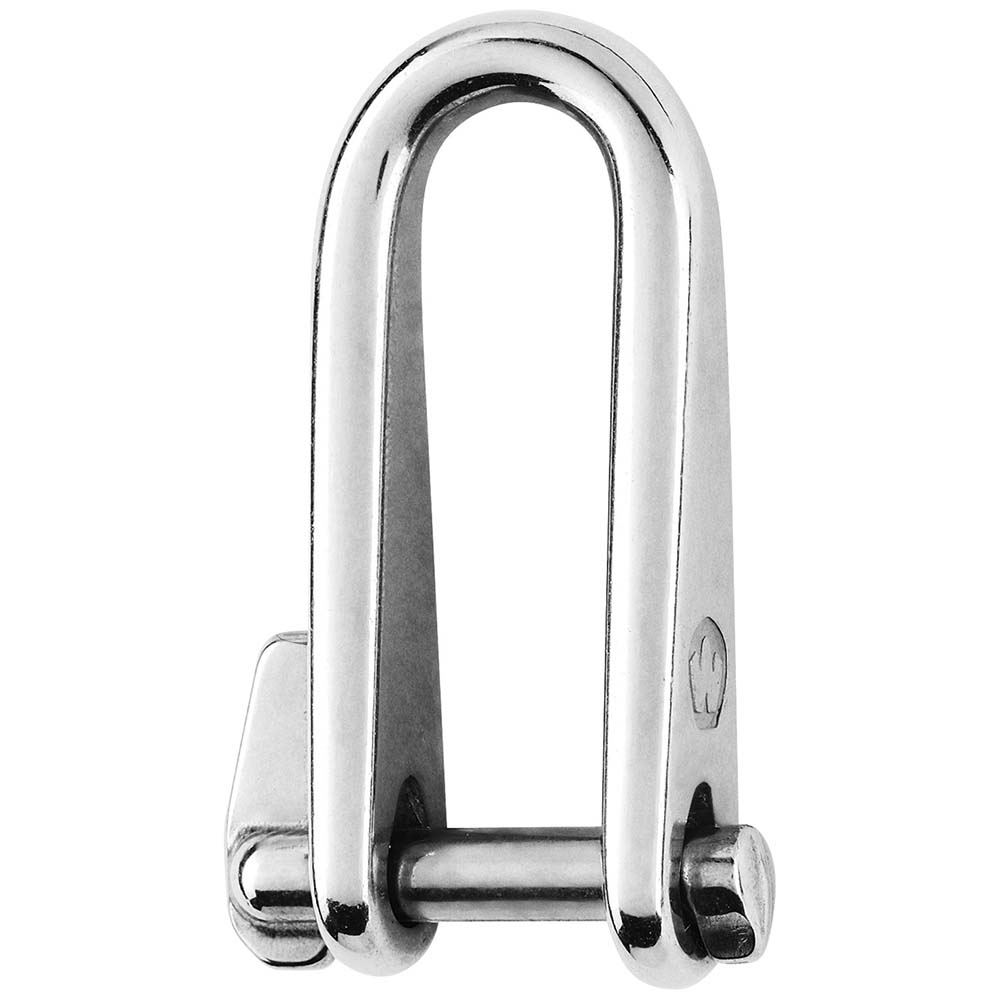

Key Pin Shackle - Diameter 8mm - 5/16"
- Key pin shackle forged in grade 316L stainless steel
- Opening and closing is done simply by rotating the pin half a turn
- No risk to lose the pin as it remains attached
- Outstanding working and breaking loads
- Perfect product for halyards or applications requiring to open /close the shackle often
- Materials 316 stainless steel grade
- Working load (lb) 1760
- Breaking load (lb) 5070
- Weight (lb) 0.267

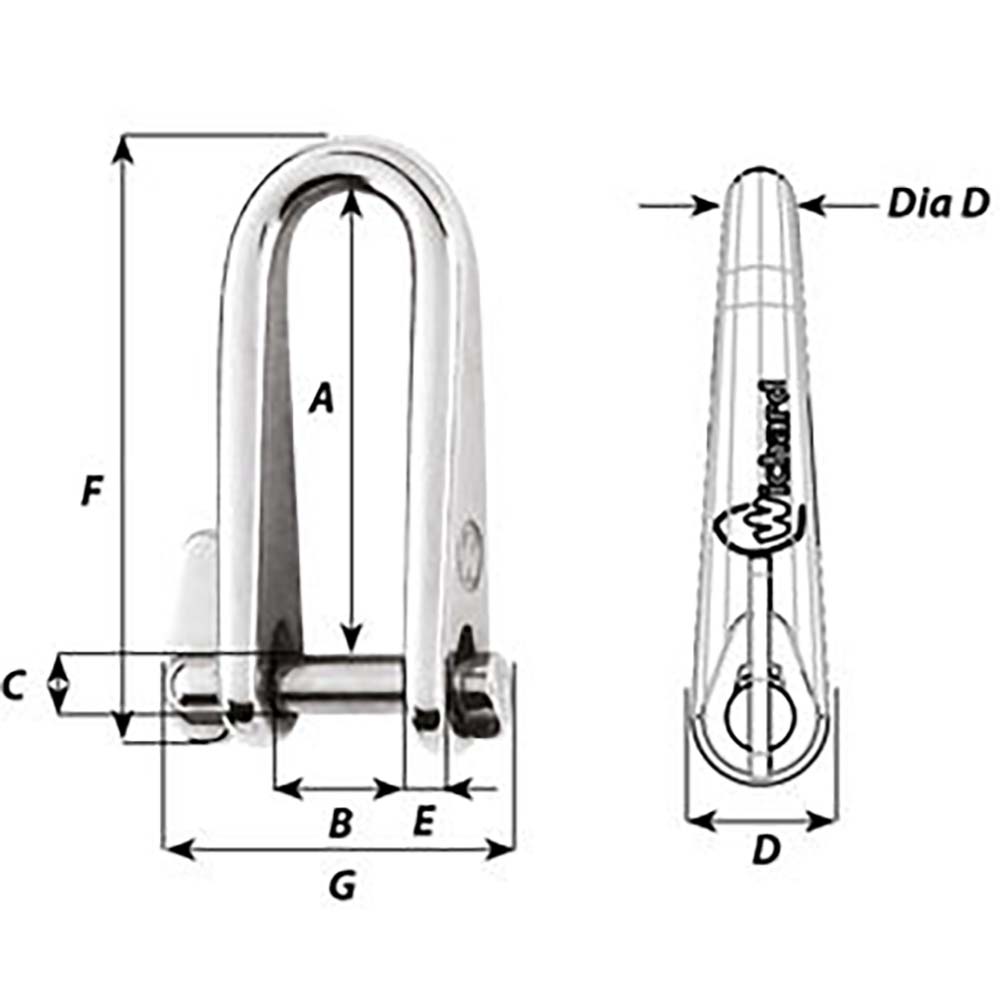

Dimensions (see 2nd image):
- A (inch) 2-21/64"
- B (inch) 53/64"
- C (inch) 5/16"
- D (inch) 43/64"
- D diameter (inch) 5/16"
- E (inch) 15/64"
- F (inch) 3-7/64"
- G (inch) 1-59/64"
